Introduction
ACOVAL microlubrication nozzles are designed to spray liquid given by microlubrication systems.
The main types of microlubrication nozzles are:
- the coaxial nozzles (copper coaxial nozzles or flexible coaxial nozzles). These nozzles are for general use.
- the flat jet nozzles are used by cutting and stamping workshops.
- the horseshoe nozzles are designed for sawing operations.
The other ACOVAL microlubrication nozzles are designed for more specific operations: thin jet nozzles, nozzles to lubricate the inside of tubes, ...
Some ACOVAL nozzles are designed for blowing: thin jet nozzles, flat jet nozzles, ...
Way of functioning
ACOVAL microlubrication nozzles are independently fed with liquid and gas. The gas must drive the liquid from the nozzle to the receiver and spray it if it is necessary. The spraying thinness is adjustable.
Coaxial nozzles

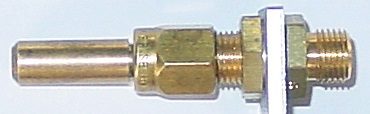

Short coaxial nozzle
CC-C EL
Copper coaxial nozzles
CC150 EL: 150 mm copper coaxial nozzle
Flexible coaxial nozzles
APM200 : 200 mm flexible coaxial nozzle
Flat jet nozzles

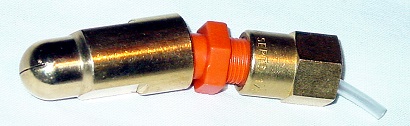

Short flat jet nozzle
CJP

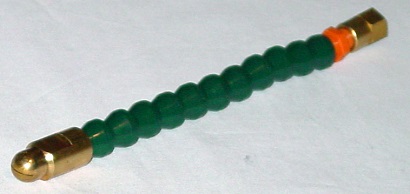

Flexible flat jet nozzles
AJP200 : 200 mm flexible flat jet nozzle
Thin jet nozzles
Copper coaxial thin jet nozzles
CC-JFF150 : 150 mm copper coaxial thin jet nozzle
Thin nozzles
CF150 : 150 mm thin nozzle
Horseshoe nozzles
Horseshoe nozzles with two or three jets
RU50-C : 55 mm horsehoe nossle with three jets
Horseshoe nozzles with four jets
RU65-R : 65 mm horseshoe nozzle with four jets for band saws

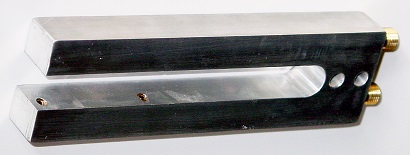

RU160-R : 160 mm horseshoe nozzle with four jets for band saws
Specific nozzles
Copper coaxial nozzles to lubricate inside tubes
CC-IT150 EL : 150 mm copper coaxial nozzle to lubricate inside tubes
Bent coaxial nozzles
